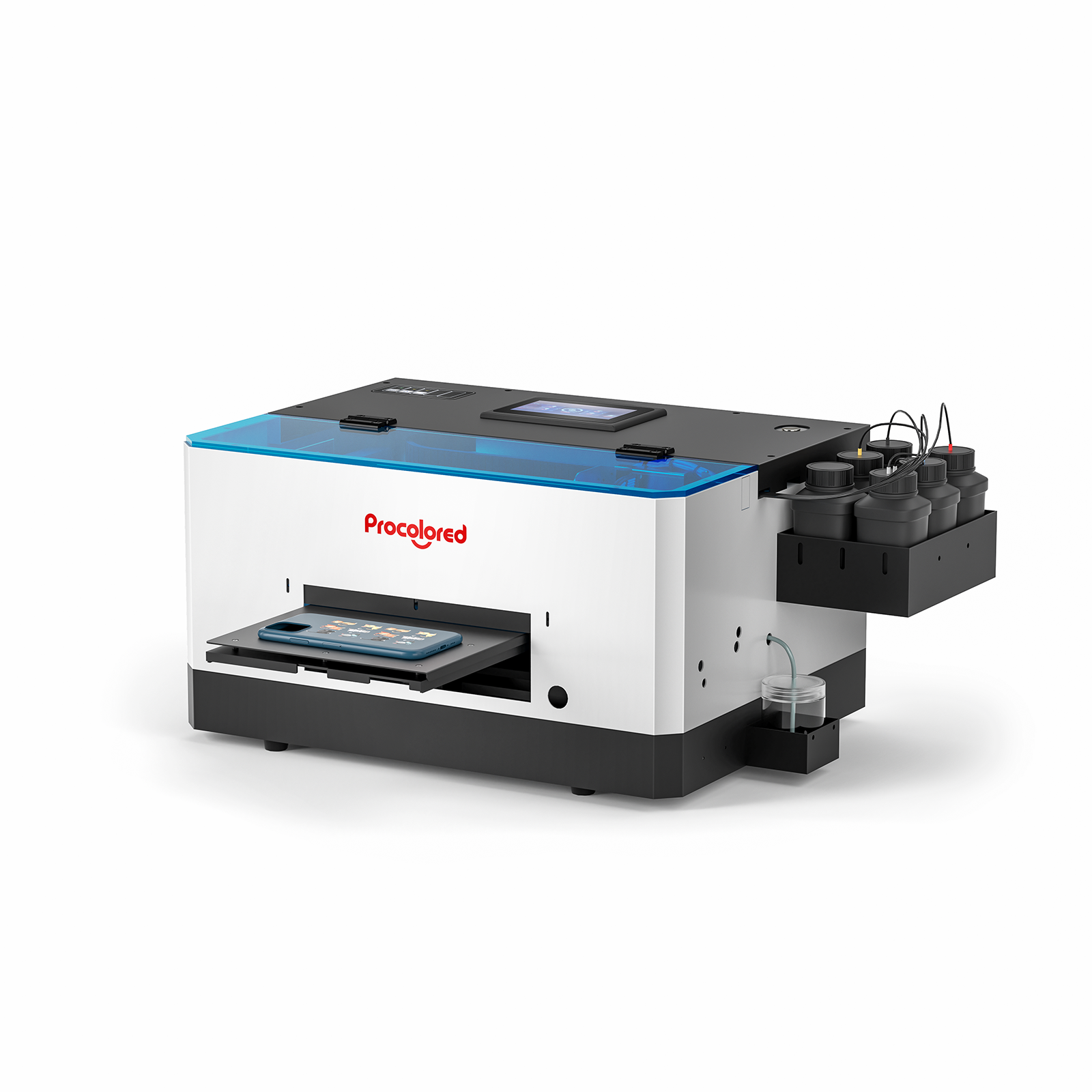

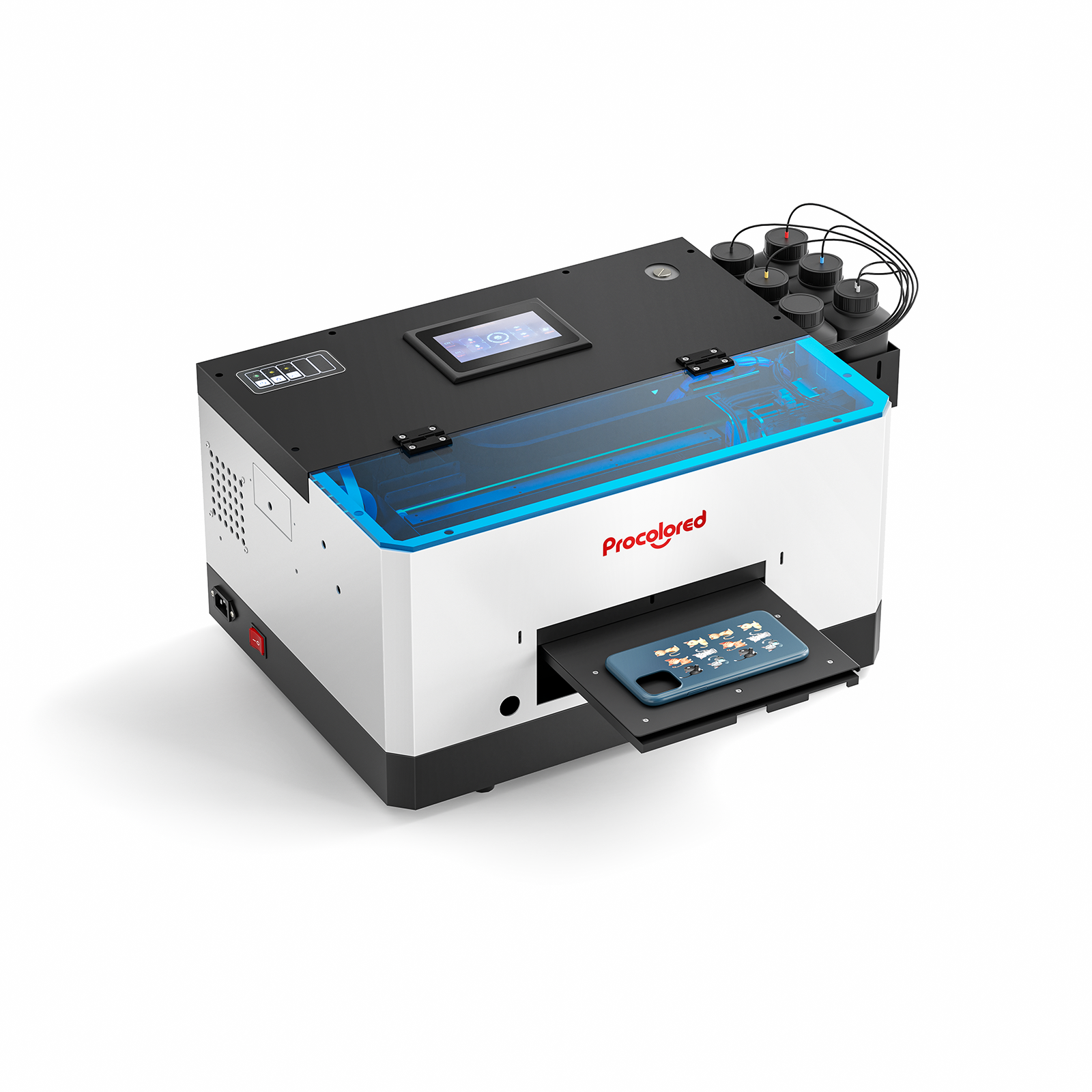

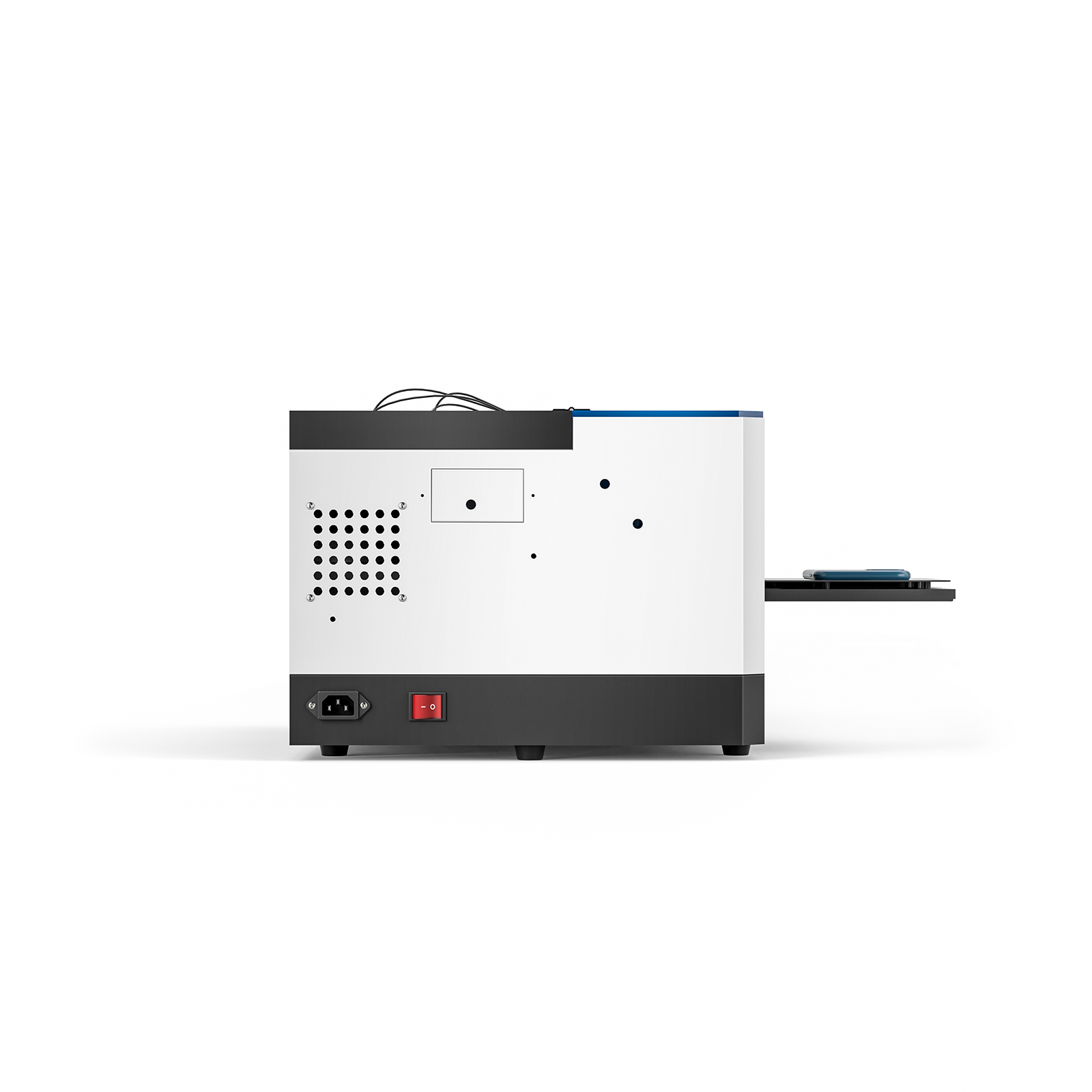

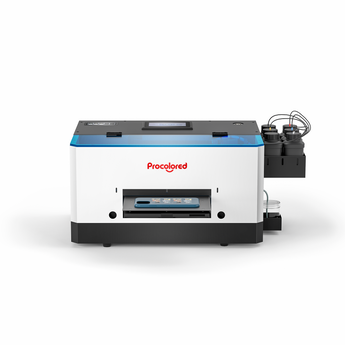

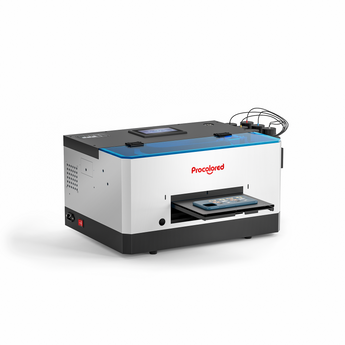

8.5" Single Head A5 UV Printer A5-20

$1,799.00
  • Barcode:

Overview


A5 printer is specially designed for printing phone case, can start small business anywhere.

Features


  • Small Size, Big Function – can start custom small business anywhere.
  • Continuous Supply Ink System – Continuous ink supply, uninterrupted printing.
  • Precise and Quike Printing – Printing size is 120*170 mm, and the printing height is 20mm, enough for any size and material phone case precise printing.
  • Cleaning Unit – More memory points, quickly catch the eye of consumers, convenient maintenance with manually disassembled.

Small Size, Big Function

Don't take up space, put in any small corner can start custom small business .

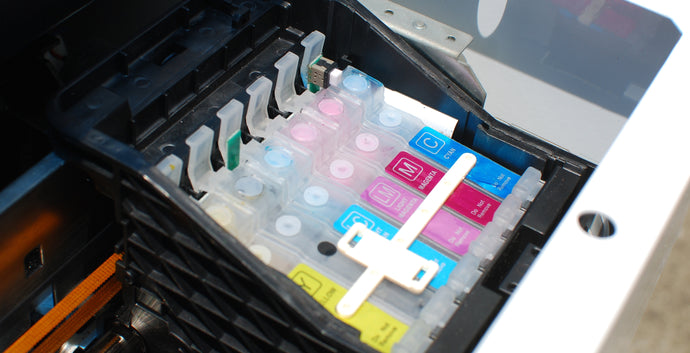

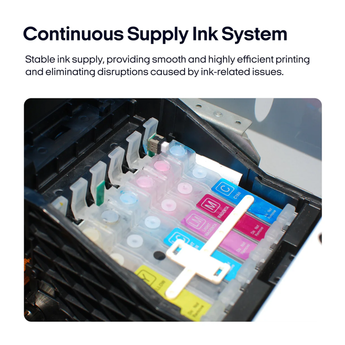

Continuous Supply Ink System

Continuous ink supply, uninterrupted printing.

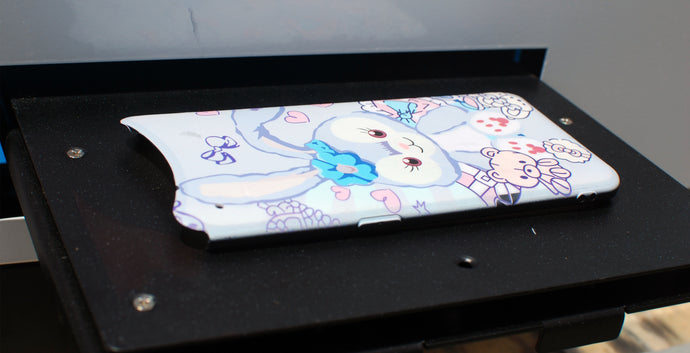

Precise Printing

Printing size is 120*170 mm, and the printing height is 20mm, enough for any size and material phone case precise printing .

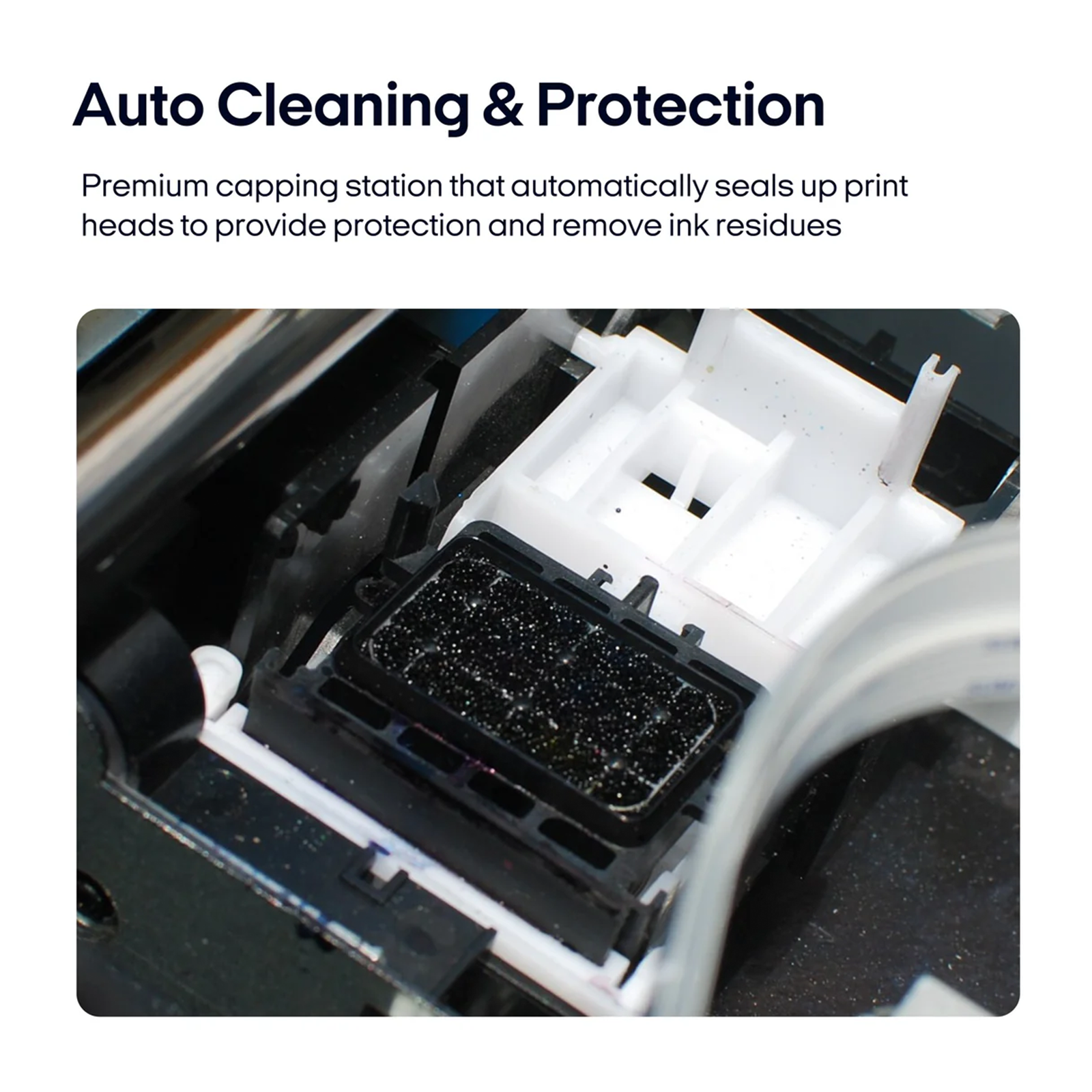

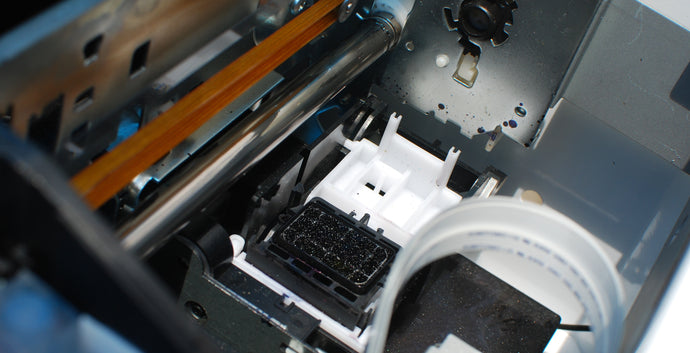

Cleaning Unit

Effectively clean excess ink and protect the print head.


Comparison

Print Head Model A5-20
Ink Supply CMYKWW(6 Color)
Printing Head L800
Printing Speed About 6 minutes/ A4
Printer Size 170*297 mm

Technical Support

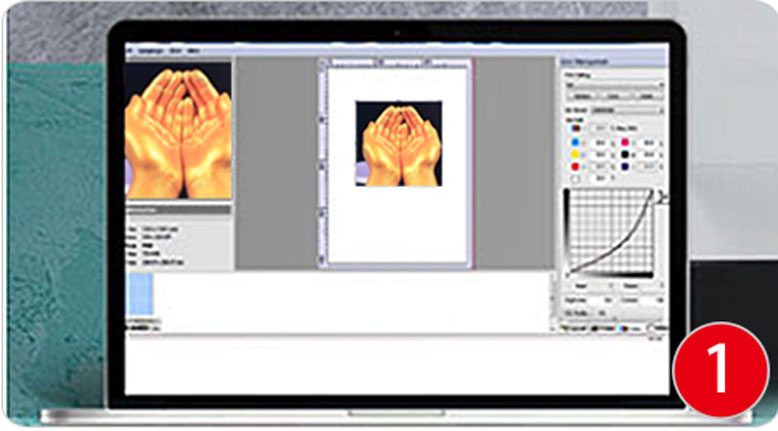

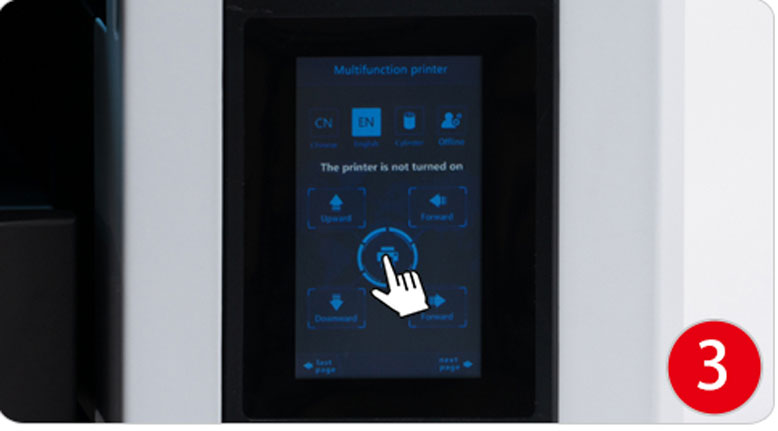

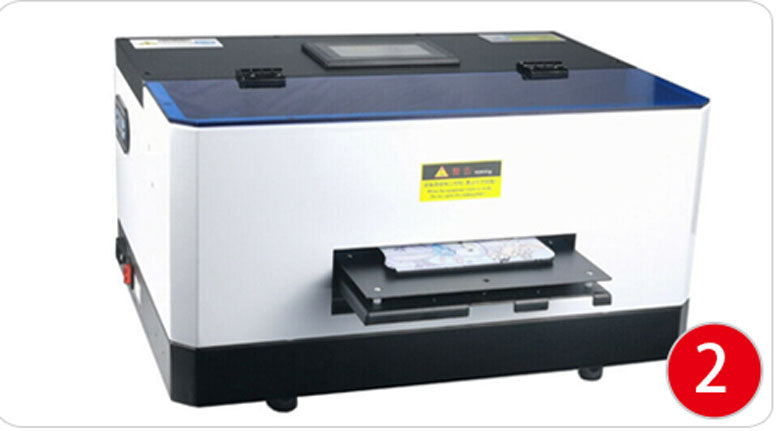

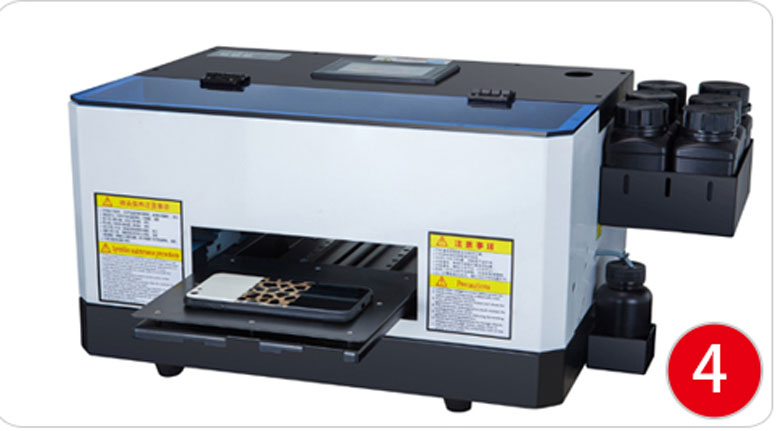

Printing Step



What’s In The Box

  • UV Printer A5-20
  • Mobile Phone Case Fixture
  • Full Set of Initial UV Ink  (CMYKW 5*100ml)
  • Ink cleaner 1*100ml
  • Nozzle protection fluid 1*50ml
  • Steel Ruler/Water Tank/4 Spare Ink Sac/Insurance
  • 6*1.2m Tubes/1.5m Wire/3pcs Syringe
  • Magnet Paper/Sticky Tape/Double Side Tape/Dust-Free Cloth

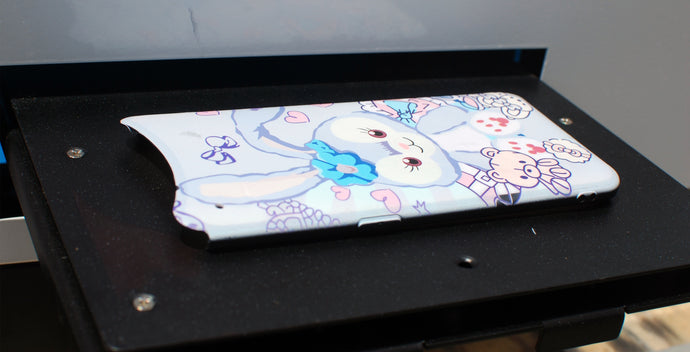

Printing Sample


Dispatch Procedure


Our Certificates


Shipment






Feedback





Specification

Model
A5-20
Print head
L800
Resolution
5760*1440DPI
Print height
15mm
Print speed
About 6 minutes/ A4
Voltage/plug
According to the country
Ink consumption
1m2 / 20ml
OS
WindowXP、7、10
Ink supply mode
6 colors (CMYKWW 6-color/print head)
Color scheme
CMYK+WW
White ink output
support / white, color print at the same time
Varnish print
none
White ink mixing
own
Relief printing
own
Net weight/Gross weight
20KG/30KG
Package size
530x400x300mm
Nozzle protection
The ink pad maintenance fluid is anti-cloggingv

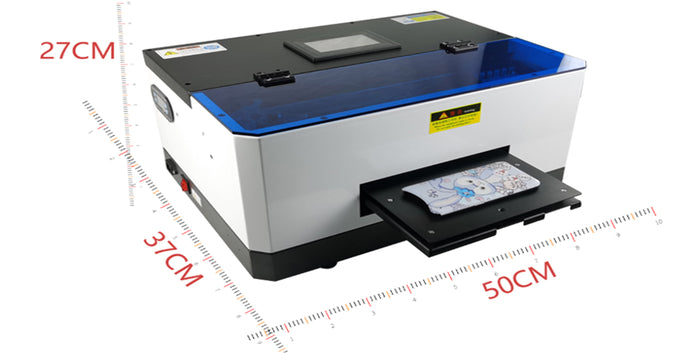

Printer size
500*370*270mm
Print media
Mobile phone case/leather/lithograph/crystal/acrylic/card/CD/U disk/name plate
Outer packaging
Export wooden box (with forklift feet) + foam
Warranty
Three-year warranty [Parts in contact with ink (or parts damaged by ink) are not guaranteed]

Shipping Time

  • Usually it takes 7 to 14 business days to arrive.
  • Our default shipment method is DHL Express
  • If you purchase ink, powder and other consumables together with the machine, the machine will be transported separately from the liquid and powder according to the transportation policy, so the delivery time is not exactly the same.
Shipping Fee

  • FREE Shipping on all items for most countries.
  • Some remote countries and regions such as Africa and Latin America need to make up part of the freight. The specific standard is subject to the shipping fee displayed at checkout.
Tax

  • Import tax and VAT are not included in the price, except for US and EU clients - we have local warehouse, customer only need to pay VAT, import tax are prepaid.
  • We’ll prepare the documents to assist on the custom clearance. More questions, please contact our sales.
Package

  • Preassembled: your printer's stand, printheads, and ink system are all assembled here by our technicians and then repackaged for freight shipment.
  • The machine is first packaged with transparent plastic film. Then put it into a wooden box and fill the gap with foam to better protect the machine.


1.What’s your technical support?
We provide after-sales service throughout the day, online technical guidance on working days, 3 years warranty. If you have any difficulties after receiving the goods, you can contact our customer service, and we will connect you with professional technical personnel.

2. Are you manufacturer ?
Yes, we are Procolored Manufacturer, our factory has two floors production work shops, three production line, and four mainly oversea warehouse in US/UK/ES/RU to produce and our promote our printer.

3. What is your warranty?
All uv printer , dtf printer and dtg printer are guaranteed for 3 years starting from the date of shipment, but the parts passed by the ink ( including print head , ink pump , cartridges , ink motor etc ) are NOT included in this clause.

4. How can I adjust the print height ?
Procolored UV/DTG Flatbed printer coming with infrared sensor, so the printer can detect the height of printing objects automatically.

5. Where can I buy the spare parts and inks?
We provide spare parts and inks, you can buy from directly or through other suppliers in your local market.

6. What about daily maintenance of the printer?
About maintenance, we suggest to power on the printer once a day.If you don't use the printer more than 3 days, please clean the print head with cleaning liquid and put it in the protective cartridges which are specially used to protect print head.

7. Does the printer support white and color print at the same time?
Yes, our printers are support white and color print in one piece.

8. How to install software after I received the machine ?
There is a software usage method for your reference, the installation method can be reviewed in the user manual. Or please contact us, our after-sales engineers will help to solve the problem.

9. What should I do when I don’t really know how to setting the printer parameters?
Please contact us for technical help and do not artificial modification.We always provide on-line technology support if there still have any issues.
