The Procolored F13X is a 13-inch A3 DTF printer equipped with dual XP600 printheads, a 5-inch touchscreen, camera-assisted printhead checks, automatic moisturizing, and built-in status monitoring. It is positioned for businesses handling regular batch orders that need more output capacity and a more standardized maintenance workflow.
This guide explains how the main F13X systems work, where the printer fits into an apparel-production workflow, and what a business should consider before upgrading.
F13X at a Glance
| Area | Overview |
|---|---|
| Printer format | 13-inch A3 DTF printer |
| Printhead setup | Dual XP600 printheads |
| Example | Add your data here. |
| Printer controls | 5-inch touchscreen |
| Printhead support | Camera-assisted checks and automatic moisturizing |
| Status visibility | Built-in startup checks and operating alerts |
Where the F13X Fits in a Growing Print Business
The F13X is most relevant when a business already has recurring demand or expects to move into regular batch work. A typical user may be fulfilling Etsy or Shopify orders, local team apparel, event merchandise, branded business clothing, or weekly market inventory.
The upgrade becomes easier to justify when one or more of these situations feels familiar:
- A single-head printer regularly creates a queue during busy periods.
- The business outsources transfers or turns down orders because in-house output is limited.
- Several operators interpret nozzle-test results differently, making maintenance inconsistent.
- The printer sits idle overnight or between production days and requires extra attention before restarting.
- The owner wants more routine controls and equipment information available directly on the printer.
- Production delays now affect fulfillment speed, customer communication, or the ability to accept larger orders.
For these businesses, the buying decision is less about collecting the largest feature list and more about removing a repeatable operational constraint.
Dual Printheads Add Production Headroom
What changes. The F13X uses two XP600 printheads to provide more production headroom for repeat batch work.
Where it helps. The added capacity is most relevant when several jobs arrive together, such as a team order, a weekend market restock, personalized shirts, or online orders that must ship on the same day.
Workflow consideration. More printer output does not remove downstream bottlenecks. Powdering, curing, heat pressing, workspace, staffing, and order management still need enough capacity to keep pace.
Camera Assisted Printhead Checks Make Maintenance More Consistent
Why the check matters.Missing lines on a nozzle test may signal a potential blockage, but they can be overlooked when an operator is rushed, inexperienced, or working through a large queue.
How it works.The printer produces a dedicated test strip, photographs it under controlled internal lighting, and compares the image with a reference pattern. If it identifies a possible blockage, it can start a cleaning cycle, check the result again, and recommend further action when needed.
What it does not replace.The camera acts as a second set of eyes. Compatible consumables, suitable room conditions, routine cleaning, and operator inspection still matter.
Automatic Moisturizing Supports the Printhead During Idle Time
The maintenance issue.During idle periods, ink can begin to dry around the printhead surface, increasing the risk of a difficult restart and extra cleaning before production resumes.
How the system responds.The F13X can trigger moisturizing automatically during extended inactivity, and users can also start it manually. A separate pump path clears residual waste ink before moisturizing fluid enters the sealed printhead area.
Maintenance boundary.Automatic moisturizing supports routine care but does not replace correct storage, scheduled cleaning, compatible ink and maintenance fluid, or the operating instructions supplied with the printer.
Touchscreen Controls and Status Alerts Bring More Work to the Printer

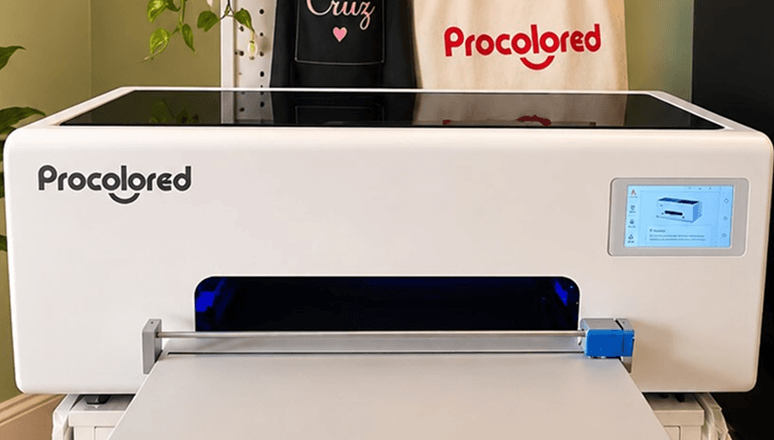

The F13X uses a 5-inch touchscreen for routine machine settings and maintenance controls. Moving more functions to the printer reduces the need to switch repeatedly between the device and a computer during everyday operation.

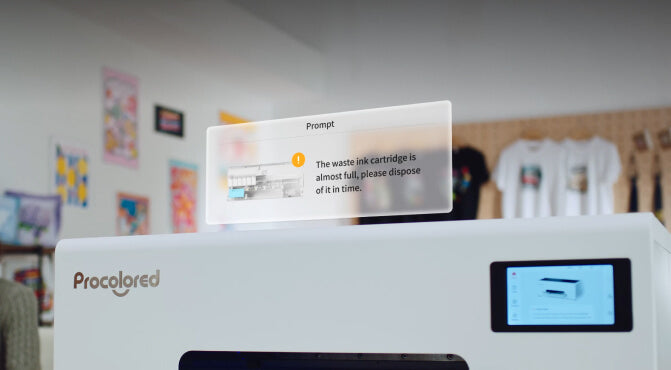

The built-in checks and alerts cover several routine conditions:
- Startup checks for core movement and printhead functions.
- Low ink or moisturizing-fluid status.
- Waste-ink container attention.
- Film conditions that may put the printhead at risk.
These alerts do not replace operator judgment, but they make machine status easier to understand before a minor condition becomes a production interruption. Behind the interface, separate pump paths, updated tubing, cable-connection protection, and film-contact protection support the ink-delivery and printhead systems.
Application Range and Output Quality
The A3 format supports individual front or back graphics and grouped smaller designs on the same film. Typical applications include:
- Custom shirts and hoodies.
- Team apparel and event merchandise.
- Tote bags, denim, canvas items, and other fabric accessories.
- Smaller logos, names, labels, and personalized graphics grouped on one film.
Finished results depend on the full process. Artwork preparation, color settings, ink, film, powder, curing, heat-press settings, fabric type, and operator technique all affect the final transfer. Shops should test new materials before full production or making durability claims to customers.
F13X and F13 Compared
The F13 remains an A3 option for starting and small-batch work. The F13X moves the F-series toward higher production capacity and more guided maintenance. The comparison below focuses on production role and workflow.
| Area | F13 | F13X |
|---|---|---|
| Primary use | Starting and small-batch apparel production | Growing order volume and repeat batch production |
| Printhead configuration | Single printhead | Dual XP600 printheads |
| Printhead checks | Manual visual check | Camera-assisted test-strip check |
| Idle-time care | Manual moisture maintenance | Automatic and manual moisturizing |
| Machine controls | Standard F13 workflow | 5-inch touchscreen and startup self-check |
| Status information | Operator-led monitoring | Built-in fluid, waste-ink, and operating alerts |
| Best fit | Budget-first users with lighter volume | Shops needing more production headroom and guided maintenance |
